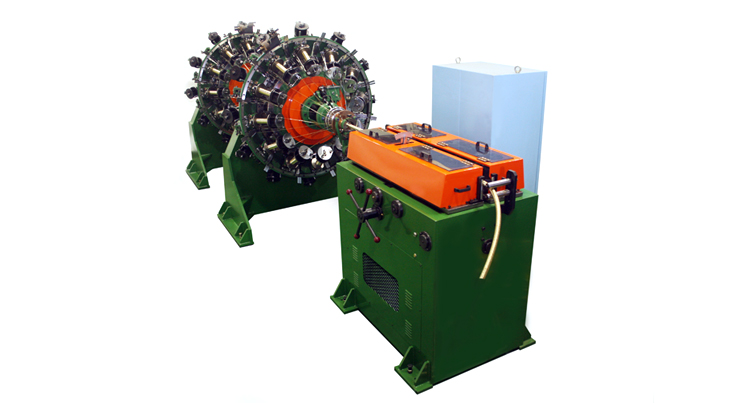

SMR HIGH SPEED WIRE BRAIDING MACHINE

It is an upgraded version of existing braiding machine and has excellent productive capacity. The capacity of bobbin has also improved from the existing model and the machine has been designed for less maintenance. Simple automatic control system. You can easily control hose standard, pitch, rotation speed, and so on using touchscreen, so even nonexperts can manage multiple machines at once. Safe and convenient operation structure. The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts.

  • High level of productivity.
  • Simple automatic control system - You can easily control hose standard, pitch, rotation speed, and so on using touchscreen.
  • Safe and convenient operation structure - The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts.
  • Automatic alarm system (Abnormality detection system)

Specifications

Name Specifications
16CR 20CR 24CR 36CR
Power Capacity 380V/50㎐
Total Power Consumption 15.1kw 15.9kw 15.9kw 19.1kw
Hose Size 1/4“ 1/4“~3/8” 3/8“~1/2” 3/4”~1 1/4“
Bobbin Size(mm) Dynamic Diameter Ø44.5mm , Outer Diameter Ø140mm , Inner Width 158mm , Outer Width 193mm
Wire Diameter(mm) 0.16mm~0.6mm
Number of The Wire 4~12
Pitch Spacing(mm) 1mm~100mm
Revolution of Carrier(rpm) 72rpm 72rpm 68rpm 50rpm
Carrier Tension(kg) 5kg ~ 11kg
Haul-off Speed MAX 5.1M/min
Machine External Dimensions(WxLxH) 1810x6100x2285 1860x6100x2450
