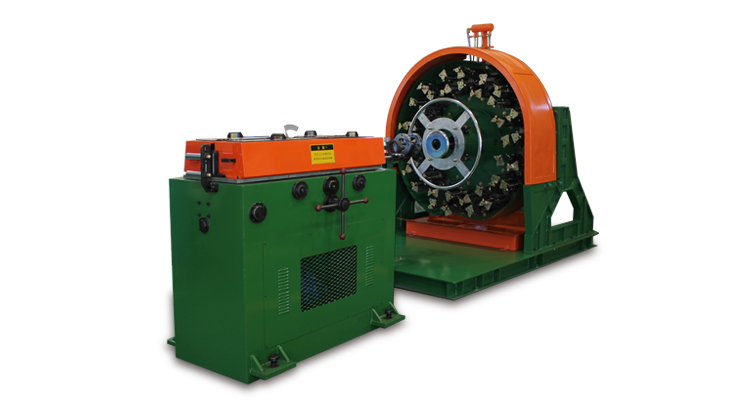

SWS WIRE SPIRAL MACHINE

It is the most basic wire braid machine. Its design is suitable for manufacturing not only stainless flexible hose and energy cable, but also high, intermediate, low pressure, and rubber. Simple automatic control system. You can easily control hose standard, pitch, rotation speed, and so on using touchscreen, so even nonexperts can manage multiple machines at the same time. Safe and convenient operation structure. The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts. High level of productivity. Simple automatic control system - You can easily control hose standard, pitch, rotation speed, and so on using touchscreen. Safe and convenient operation structure - The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts. Versatile. You can construct production line with single and multiple braiding deck.

  • Simple automatic control system - You can easily control hose standard, pitch, rotation speed, and so on using touchscreen.
  • Safe and convenient operation structure - The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts.
  • Automatic alarm system (Abnormality detection system)

Specifications

Name Specifications
16CR 20CR 24CR 36CR
Power Capacity 380V/60Hz (380V/50㎐)
Total Power Consumption Single 5.2kw 5.2kw 5.2kw 7kw
Double 8.9kw 12.5kw 12.5kw 16.5kw
Hose Size 1/4“ 1/4“~3/8” 3/8“~1/2” 3/4”~ 1  ₁/₄”
Bobbin Size(mm) Dynamic Diameter Ø31mm , Outer Diameter Ø83mm ,Axial Diameter Ø19.5mm , Inner Width 203mm , Outer Width 229mm
Wire Diameter(mm) 0.16mm ~ 0.6mm
Pitch Spacing(mm) 15mm~75mm 18mm~90mm 25mm~100mm 45mm~150mm
Revolution of Carrier 60Hz MAX 43 rpm MAX 36 rpm MAX 30 rpm MAX 20 rpm
Carrier Tension(kg) 5kg~9kg
Machine External Dimensions(WxLxH) Single 1025x3835x1815 1150x3970x1880 1260x3970x1940 1630x4215x2120
Machine External Dimensions(WxLxH) Double 1025x5670x1815 1150x5687x1880 1260x5687x1940 -

Name Specifications
48CR 64CR 96CR
Power Capacity 380V/60Hz (380V/50㎐)
Total Power Consumption Single 11.2kw 14.7kw 27.5kw
Double 25.7kw 33.7kw -
Hose Size 1 1/2“~2 1/2“ 3“~5” 5“~8”
Bobbin Size(mm) Dynamic Diameter Ø31mm , Outer Diameter Ø83mm ,Axial Diameter Ø19.5mm , Inner Width 203mm , Outer Width 229mm
Wire Diameter(mm) 0.16mm ~ 0.6mm
Pitch Spacing(mm) 60mm~250mm 100mm~500mm 200mm~1200mm
Revolution of Carrier 60Hz MAX 15 rpm MAX 11 rpm MAX 7 rpm
Carrier Tension(kg) 5kg~9kg
Machine External Dimensions(WxLxH) Single 2020x4745x2510 2410x5165x3000 5010x9070x5160
Machine External Dimensions(WxLxH) Double 2020x7005x2510 2410x8610x3000 -
