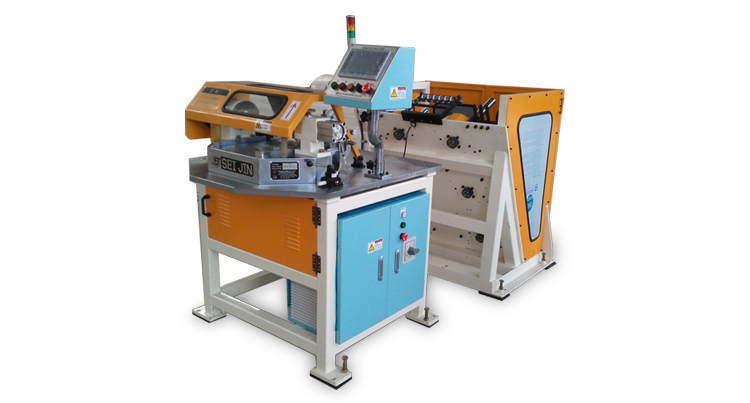

This machine is for driving a wire spiral machine and wraps a steel wire around a spiral bobbin (bobbin group 3-6).
Specifications
Name | Specifications | |
---|---|---|
Power Capacity | 380V/60Hz | |
Total Power Consumption | 2.6kw | |
Bobbin | Size(mm) | Dynamic Diameter Ø82mm , Outer Diameter Ø172mm |
Type of Bobbin | 3 ~ 6 BOBBIN GROUP | |
Wire diameter(mm) | 0.16mm~0.6mm | |
Pitch Spacing(mm) | 0.16mm~5mm | |
Bobbin Revolutions(rpm) | MAX 1500rpm | |
Machine External Dimensions(WxLxH) | 2064x2440x1174 |
