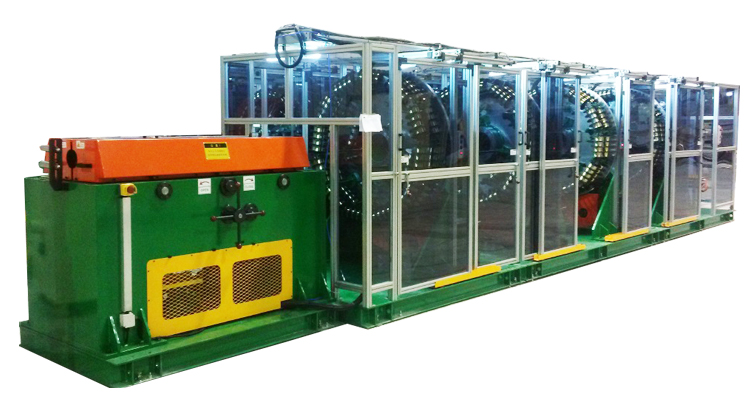

SWS WIRE SPIRAL MACHINE

Spiral machine produces high pressure hydraulic hose by wrapping high steel wire in order from side to side of the center of the hose that can withstand extra-high voltage. Since the production speed is faster and the radius of curvature of hose is smaller (better bending) than the braiding machine, the machine is used in many different areas. Spiral hose, in particular, is used often in the field where high-voltage is frequently used such as heavy equipment (excavator, rock drill). Pitch input and rotation setting can be controlled through touchscreen, which makes it easy to drive and operate.

  • High level of productivity.
  • Simple automatic control system - You can easily control hose standard, pitch, rotation speed, and so on using touchscreen.
  • Safe and convenient operation structure - The structure is designed to ensure safety and comfort of workers and it is easy to setup the machine or replace bobbin and other parts.
  • Automatic alarm system (Abnormality detection system)

Specifications

Name Specifications
30x4S 30x6S 36x4S 36x6S
Power Capacity 380V/60㎐
Total Power Consumption 62kw 88.9kw 62kw 88.9kw
Hose Size 3/8"~2" 3/8"~2" 3/8"~3" 3/8"~3"
Bobbin Size(mm) Dynamic Diameter Ø82mm , Outer Diameter Ø172mm
Type of Bobbin 3 ~ 6 BOBBIN GROUP
Wire Diameter(mm) 0.16mm ~ 0.6mm
Plies of wire 90~180 108~216
Pitch Spacing(mm) 1mm~220mm
Speed of Deck Inside Deck MAX 293rpm
1~6 Deck MAX 100rpm
Haul-off 20.6 M/min
Machine External Dimensions(WxLxH) 1800x10660x2292 1800x16130x2292 1800x11510x2292 1800x17370x2292
