TAKE-UP MACHINE

  • home>
  • Products>
  • TAKE-UP MACHINE

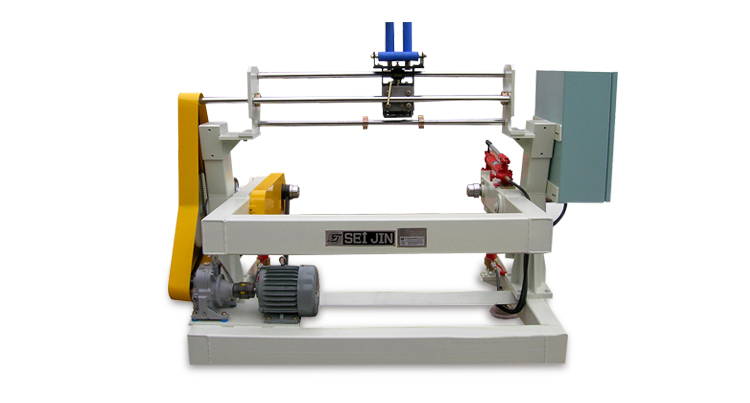

The machine evenly coils hose produced from braiding machine around the drum in different kinds of pitch depending on thickness.

Specifications

Name Specifications
Power Capacity 380V/60㎐
Total Power Consumption 1.6kw
Hose Size Outer Diameter Ø8mm~Ø30mm
Pitch Spacing(mm) 5.9mm~59mm Continuously adjustable
Drum Size ∅ 1200 DRUM ~ ∅ 1600 DRUM
Machine External Dimensions(WxLxH) 1645x1200x1670
