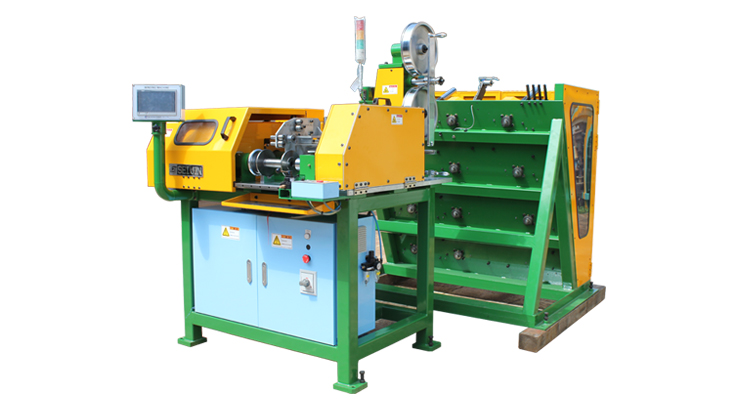

WIRE WINDING MACHINE

The device coils timber around bobbin of spiral, rb2, and braiding machine. SEIJIN's winding machine is well-known for its high reel quality and the best productivity.

  • Simple automatic control system - You can easily control hose standard, pitch, rotation speed, and so on using touchscreen.
  • Automatic alarm system (Abnormality detection system)

Specifications

Name Specifications
Power Capacity 380V/60Hz (380V/50㎐)
Total Power Consumption 6.25kw
Bobbin Size(mm) Dynamic Diameter Ø140mm , Outer Diameter Ø45mm , Inner Width 173mm , Outer Width 199mm
Type of Bobbin Outer Diameter Ø83mm~Ø140
Wire diameter(mm) 0.16mm~0.6mm
Number of The Wire 4~12
Pitch Spacing(mm) 0.5mm~30mm
Bobbin Revolutions(rpm) MAX 1500rpm
Machine External Dimensions(WxLxH) 1565x2100x1846
